Linear Slide Rails in Ultra-Clean Pharmaceutical Filling Lines
The first design criterion is surface integrity. Standard chrome-plated rails exhibit micro-pores that can harbor bacterial spores or cleaning-agent residues. Instead, rails are machined from 316L vacuum-remelt stainless steel, electropolished to an Ra of 0.02 µm, then passivated in citric acid to remove free iron. This sequence yields a chromium-oxide layer <5 nm thick that withstands 1 000 autoclave cycles at 134 °C without pitting. To see how this translates into documented clean-room performance, you can download the validation white paper and compare particle-count data before and after electropolishing.
Next, lubrication chemistry must be both sterile and non-reactive. PFPE-based oils thickened with medical-grade PTFE micropowder provide boundary lubrication yet remain chemically inert to IPA, hydrogen peroxide vapor, and chlorine dioxide. A closed-loop oil-air system delivers 0.15 mL h⁻¹ to each carriage, preventing the “pumping” action that can aspirate room air past conventional seals. The entire lubrication circuit is sterilizable in place (SIP) at 121 °C for 30 minutes, eliminating the need for manual regreasing that could breach the aseptic barrier. For step-by-step SIP parameters and recommended filter grades, the technical note gives detailed schematics.
Sealing strategy is layered. An outer FDA-grade silicone wiper prevents macroscopic ingress, while an inner PTFE labyrinth traps particles down to 0.3 µm. Between the two, a sterile air purge at 0.2 bar overpressure creates an outward airflow that blocks viable organisms. The seal stack is molded as a single unit, eliminating the micro-gaps where biofilms could form. Each batch of seals is gamma-irradiated at 25 kGy and shipped in double-bagged Tyvek to maintain sterility until installation.
Traceability is equally critical. Every rail is laser-etched with a data-matrix code that links to a digital birth certificate: melt number, forging ratio, passivation lot, seal batch, and lubrication charge. The code survives 1 000 autoclave cycles and can be read by any smartphone camera, ensuring that audits can be completed in minutes rather than days. In the event of a deviation, a single scan identifies every downstream vial that could be affected, enabling targeted recalls instead of mass destruction.

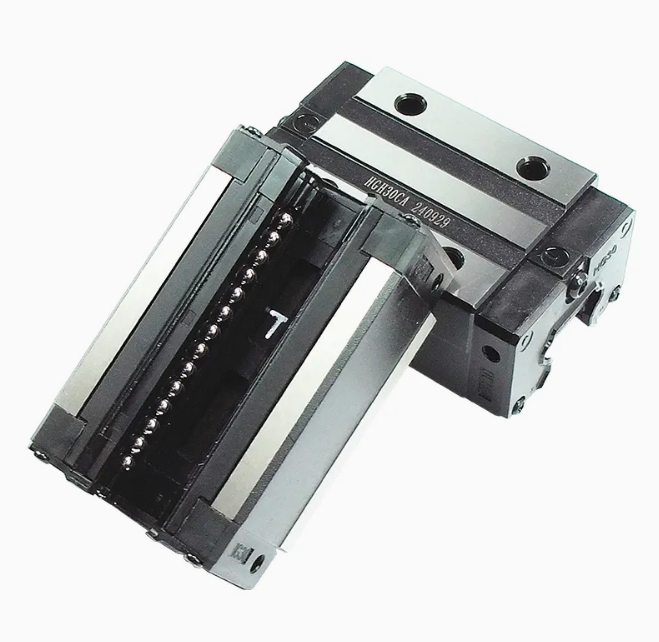

Dynamic performance has not been sacrificed for sterility. A 25 mm wide rail with four-point-contact geometry achieves 0.8 µm repeatability at 1.5 m s⁻¹—fast enough to keep pace with 600 vials per minute. Acceleration is limited to 3 m s⁻² to prevent liquid “sloshing,” while jerk is shaped by a seventh-order trajectory planner to minimize vibration that could dislodge droplets inside the laminar hood.
Maintenance is condition-based rather than calendar-based. Accelerometers embedded in each carriage log vibration signatures every cycle. A TinyML model running on an edge gateway detects the ultrasonic precursors of spallation 200 hours in advance, scheduling replacement during planned CIP/SIP windows. Since adopting the predictive model, one global pharma company reported zero batch rejections due to linear-motion anomalies over 18 months—a metric worth tens of millions in saved product.
In short, the humble linear slide rail has become a critical control point in pharmaceutical manufacturing. By integrating material science, lubrication chemistry, and digital traceability, modern rails deliver both sterile motion and regulatory peace of mind.
