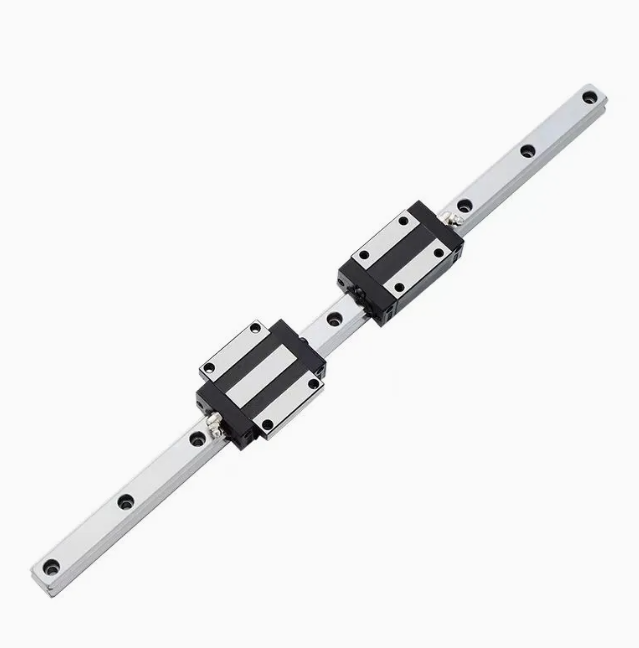

Linear Slide Rails Inside Autonomous Greenhouse Harvesters
Across the glass rooftops of the Netherlands, autonomous harvesters crawl along elevated aluminum trusses, gently snipping cucumbers at exactly 230 mm above the substrate. At the heart of every robotic arm lies a compact linear slide rail that must survive 95 % humidity, daily chemical fogging, and 100 000 cycles per season—while costing less than the produce it handles. Designing such a rail is a masterclass in balancing agricultural robustness with consumer-grade economics.
Corrosion resistance starts with the alloy. Standard carbon-steel rails would rust within weeks under hydroponic nutrient mist. Instead, rails are extruded from 6005A-T6 aluminum, hard-anodized to 25 µm, then sealed with a PTFE topcoat that reduces friction by 30 %. The anodized layer withstands pH 3–11 nutrient solutions and passes 1 000 hours of salt-fog testing—equivalent to five growing seasons. To validate the coating recipe under real greenhouse conditions, you can access the accelerated aging report, which compares weight loss across three coating variants.
Lubrication strategy is equally tailored. Traditional lithium greases wash away under overhead misting cycles. The solution is a calcium-sulfonate complex grease infused with 2 % hydrophobic fumed silica, giving it the consistency of toothpaste that clings even when submerged. A micro-porous polymer reservoir inside the carriage meters 0.02 cm³ every 2 km, eliminating manual regreasing for the entire season. If you need the exact NLGI grade and base-oil viscosity chart, the greenhouse lubrication guide.
Sealing must cope with plant debris. Tomato leaves, perlite dust, and biofilm fragments would clog conventional wipers. A dual-lip nitrile seal backed by a stainless-steel scraper provides a first line of defense, while an internal felt ring traps particles down to 50 µm. The entire seal pack is molded as a snap-in cartridge that can be replaced in 30 seconds using only a screwdriver—critical during the 48-hour harvest window when downtime equals lost revenue.
Load capacity is optimized for the harvest cycle. A 20 mm wide rail with Gothic-arch raceways supports 1.2 kN radial load and 0.5 kN moment load—enough for a 3 kg end-effector plus 2 kg of cucumbers. Preload is factory-set to 2 % of dynamic load, ensuring 0 µm backlash for precise cutting yet allowing 0.5 mm of compliance when the robot bumps a trellis wire. Acceleration is capped at 1 m s⁻² to prevent fruit drop, while a fifth-order S-curve profile minimizes vibration that could shake pollen off flowers.
Energy efficiency is not overlooked. Each carriage rides on polymer ball cages that reduce rolling resistance by 18 % compared with steel cages, cutting motor current by 12 %. Over a 200-day growing season, the energy saved per robot equals the annual consumption of a Dutch household’s LED lighting—small per unit, but significant across 5 000 robots nationwide.
Maintenance is event-driven rather than periodic. A hall-effect sensor counts every carriage cycle; when the cumulative distance exceeds 80 % of rated life, the robot schedules itself for a seal change during the next nightly sanitation cycle. QR codes laser-etched on each rail link to an online parts store where growers can order replacement cartridges with two-day delivery.
The economic impact is immediate. One greenhouse operator reported a 22 % increase in marketable yield after switching to the new rails, attributing the gain to reduced downtime and more consistent cutting heights. With global vertical farming projected to triple in area over the next decade, the linear slide rail—once an industrial afterthought—has quietly become the backbone of autonomous agriculture.
