In the intricate world of linear motion, the guide rail serves as the architect, meticulously defining the path and ensuring the stability of movement. As a fundamental component in countless industrial and automation systems, the guide rail directly influences precision, repeatability, and overall performance. From the delicate operations of medical devices to the robust demands of CNC machinery, the selection and implementation of appropriate guide rails are paramount. This article delves into the multifaceted realm of guide rails, exploring their diverse types, materials, manufacturing processes, and critical considerations for optimal selection and application.
Defining the Role of a Guide Rail
The primary function of a guide rail is to provide a rigid, precisely aligned track that dictates the path of linear motion. It acts as the guiding element, ensuring that the associated bearing or slider traverses a defined straight path with minimal deviation. The guide rail must withstand substantial loads and forces while maintaining its
structural integrity and dimensional accuracy, making material selection and manufacturing processes of utmost importance.
Exploring the Landscape of Guide Rail Types
Guide rails are available in a diverse range of designs, each tailored for specific applications and performance requirements:

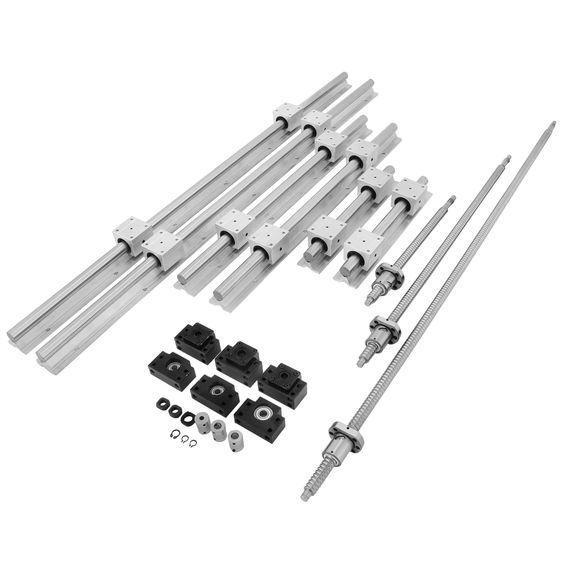

- Round Shaft Guide Rails: Representing a simpler and more cost-effective option, these consist of a hardened and ground round shaft. They typically interface with linear ball bearings that slide along the shaft. While offering ease of installation and affordability, they may exhibit lower load capacity and rigidity compared to other designs.
- Square or Rectangular Guide Rails: Featuring a square or rectangular cross-section, these rails are often paired with linear bearings or slides that envelop the rail. They provide enhanced load capacity and stiffness compared to round shaft rails.
- Profiled Guide Rails: These high-precision rails boast a complex profile meticulously engineered to optimize load distribution and stiffness. They typically integrate with recirculating ball or roller bearings within a carriage that traverses the rail. Profiled rails deliver the highest levels of accuracy, rigidity, and load capacity, making them ideally suited for demanding applications such as CNC machining centers and precision automation equipment. Yinhe Precision Transmission specializes in the production of these high-precision linear guides and sliders.
- Miniature Guide Rails: These compact versions of profiled rails are designed for applications where space is constrained, such as medical devices, laboratory equipment, and small automation systems.
Materials and Manufacturing: The Cornerstones of Performance
The choice of material and manufacturing process significantly influences the performance and durability of
a guide rail:
- Steel: As the most common material, steel offers a compelling balance of strength, stiffness, and cost-effectiveness. High-carbon steels are frequently employed, followed by hardening and grinding processes to achieve the desired surface finish and dimensional accuracy.
- Stainless Steel: In environments demanding corrosion resistance, such as food processing, medical, and marine applications, stainless steel emerges as the preferred choice.
- Aluminum: Aluminum can be utilized in lighter-duty applications where weight is a primary concern. However, it generally exhibits lower stiffness and load capacity compared to steel.
- Manufacturing Processes: Precision grinding, honing, and lapping techniques are employed to achieve the stringent surface finish and dimensional accuracy required for guide rails. Heat treatment processes are also utilized to enhance the hardness and wear resistance of the material.
Key Considerations for Optimal Selection
Selecting the appropriate guide rail for a specific application necessitates careful evaluation of several factors:
- Load Capacity: The guide rail must be capable of safely supporting the weight of the load and any additional forces acting on the system.
- Accuracy: The required accuracy of the linear motion will dictate the type and quality of guide rail needed. Yinhe's HGH15ca High-Precision Linear Guide exemplifies this.
- Stiffness: The stiffness of the guide rail will influence the amount of deflection under load.
- Environment: The operating environment, including temperature, humidity, and exposure to contaminants, will influence the selection of materials and coatings.
- Travel Length: The required travel length of the linear motion will determine the necessary length of the guide rail.
- Mounting: Secure mounting of the guide rail to a rigid base is essential for ensuring accurate and stable operation.
Yinhe Precision Transmission: A Commitment to Excellence
Yinhe Precision Transmission stands out as a supplier of high-precision linear guides and sliders, actively expanding its linear motion product line. With a commitment to superior quality, reasonable prices, and prompt delivery, Yinhe has earned the trust of numerous domestic users. The company's core corporate values of "Integrity, Continuous Improvement, and Pursuit of Perfection" underscore its dedication to providing exceptional products and services.
Conclusion
The guide rail serves as a cornerstone of precise and reliable linear motion, providing the essential framework for countless applications. By understanding the different types of guide rails, their materials, manufacturing processes, and key selection considerations, engineers and designers can optimize the performance of their linear motion systems.
