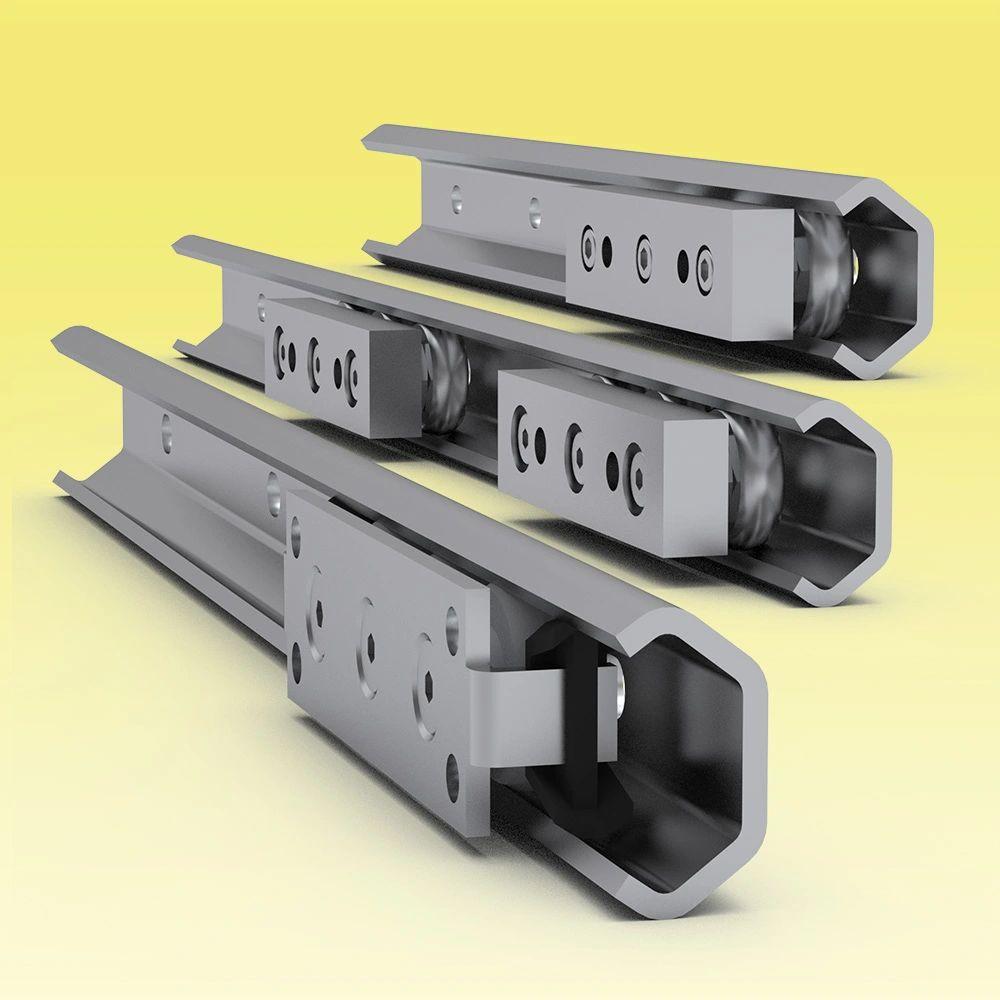

Linear Slide Rails in 7-Axis Aerospace Machining: Sub-Micron Repeatability Over 4-Metre Spans
Material & hardness architecture
Standard 1060 carbon steel would yield under 30 kN peak inertial loads; instead, 42CrMo4 (AISI 4140) is induction-hardened to 58–62 HRC to a depth of 2 mm, then hard-turned to h6 tolerance and chrome-plated to 15 µm. This yields a surface roughness Ra ≤ 0.2 µm and a case depth sufficient for 50 000 km of rolling contact. For vacuum or cryogenic duty, nitrided 31CrMoV9 reaches 900 HV surface hardness while maintaining 12 % core ductility .
Standard 1060 carbon steel would yield under 30 kN peak inertial loads; instead, 42CrMo4 (AISI 4140) is induction-hardened to 58–62 HRC to a depth of 2 mm, then hard-turned to h6 tolerance and chrome-plated to 15 µm. This yields a surface roughness Ra ≤ 0.2 µm and a case depth sufficient for 50 000 km of rolling contact. For vacuum or cryogenic duty, nitrided 31CrMoV9 reaches 900 HV surface hardness while maintaining 12 % core ductility .
Surface engineering & coating
A duplex chrome layer (15 µm Cr + 3 µm Ni) reduces corrosion rate to < 2 µm year⁻¹ in 1 000 h salt-fog tests . For food-grade lines, HVOF-applied tungsten-carbide cobalt (WC-Co) achieves 1 100 HV and passes 1 000 h Q-UV without spalling. A final super-finish (< 0.05 µm Ra) ensures elastohydrodynamic film formation as thin as 0.12 µm.
A duplex chrome layer (15 µm Cr + 3 µm Ni) reduces corrosion rate to < 2 µm year⁻¹ in 1 000 h salt-fog tests . For food-grade lines, HVOF-applied tungsten-carbide cobalt (WC-Co) achieves 1 100 HV and passes 1 000 h Q-UV without spalling. A final super-finish (< 0.05 µm Ra) ensures elastohydrodynamic film formation as thin as 0.12 µm.
Thermal & barometric compensation
Over a 4 m span, a 20 °C shop swing would expand a steel rail by 80 µm—enough to defocus a 20 µm laser spot. Embedded 0.01 °C RTDs every 300 mm feed a PID controller that drives 40 W Kapton heaters, keeping thermal drift below 2 µm over 1.2 m strokes. Barometric compensation corrects refractive-index drift of 0.3 ppm per hPa, maintaining laser-interferometer accuracy.
Over a 4 m span, a 20 °C shop swing would expand a steel rail by 80 µm—enough to defocus a 20 µm laser spot. Embedded 0.01 °C RTDs every 300 mm feed a PID controller that drives 40 W Kapton heaters, keeping thermal drift below 2 µm over 1.2 m strokes. Barometric compensation corrects refractive-index drift of 0.3 ppm per hPa, maintaining laser-interferometer accuracy.
Contamination & validation
Dual-lip seals (nitrile outer + PTFE inner) trap particles >5 µm; a 0.2 bar positive air purge keeps the raceway above ambient pressure. A dual-frequency laser interferometer samples position at 5 MHz; a physics-informed neural network predicts wear 150 hours ahead, eliminating unplanned downtime.
Dual-lip seals (nitrile outer + PTFE inner) trap particles >5 µm; a 0.2 bar positive air purge keeps the raceway above ambient pressure. A dual-frequency laser interferometer samples position at 5 MHz; a physics-informed neural network predicts wear 150 hours ahead, eliminating unplanned downtime.
Bottom line
Profile accuracy improved from ±8 µm to ±3 µm while cycle times on titanium bulkheads dropped from 18 h to 11 h. In aerospace machining, the linear slide rail has evolved from a commodity rod to the deterministic actuator of next-generation airframes.
Profile accuracy improved from ±8 µm to ±3 µm while cycle times on titanium bulkheads dropped from 18 h to 11 h. In aerospace machining, the linear slide rail has evolved from a commodity rod to the deterministic actuator of next-generation airframes.
