Selecting the correct linear motion system can make a huge difference in your machine’s performance. Whether you’re upgrading a CNC router or designing a new automation line, understanding the selection process ensures precision, stability, and long-term efficiency.

Step 1: Define Your Load Requirements

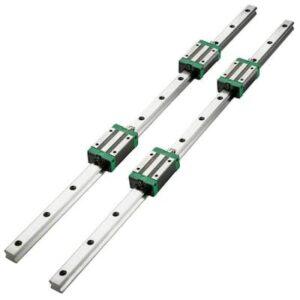

Before you start shopping for linear guide rails, you must first calculate your load capacity. Consider:

• Static Load: The constant weight that the system supports.

• Dynamic Load: The changing forces during operation.

• Moment Load: The rotational force acting on the guide.

Once you know these parameters, you can select a rail and block that can handle your application’s requirements without deformation or premature wear.

Step 2: Determine Accuracy and Precision Needs

Different industries require varying levels of precision. Semiconductor and medical equipment demand ultra-high precision, while industrial conveyors might need less stringent tolerances. Yinhe Transmission provides a wide range of linear guides and bearings designed for different precision levels.

Step 3: Evaluate Operating Environment

Temperature, humidity, dust, and vibration all influence your system’s performance. For example:

• In dusty environments, sealed linear blocks are essential.

• High-temperature applications require special lubricants and coatings.

• Cleanrooms demand stainless-steel linear rails for corrosion resistance.

Step 4: Motion Speed and Stroke Length

Longer strokes and higher speeds require rails with better rigidity and optimized lubrication systems. Make sure the rail size and block count match your machine’s kinematics.

Step 5: Installation and Maintenance

Proper installation ensures alignment and prevents uneven wear. Regular lubrication is crucial to maintain efficiency and extend lifespan.

Why Choose Yinhe Transmission

Yinhe Transmission offers linear guideways and ball screws that combine precision with durability, suitable for a variety of machine types. Each product undergoes rigorous quality control to ensure high rigidity, smooth motion, and long service life.

Explore the full range at https://yhlinear.com/ and find customized motion solutions designed to match your needs perfectly.
