Vacuum Interrupter: The Heart of Modern Circuit Breakers

Postado 2025-10-20 05:49:54

In the realm of electrical power systems, the ability to safely and reliably interrupt current—especially during faults—is paramount. For decades, vacuum interrupters (VIs) have served as the core technology in medium-voltage (MV) circuit breakers, offering a compelling alternative to traditional oil or gas-based interruption methods. Their compact design, zero environmental impact, and exceptional arc-quenching performance have made them indispensable in modern power distribution networks. This article explores the working principles, technical advantages, and evolving applications of vacuum interrupters, highlighting why they are the preferred choice for sustainable and efficient electrical systems.

I. What Is a Vacuum Interrupter?

A vacuum interrupter is a sealed device that extinguishes electrical arcs in a high-vacuum environment (typically 10⁻⁴ to 10⁻⁷ mbar). It consists of three main components:

Fixed and Movable Contacts: The current-carrying elements that open and close the circuit.
Vacuum Chamber: A hermetically sealed glass or ceramic envelope filled with an ultra-high vacuum, preventing ionized gas from sustaining arcs.
Metal Bellows: A flexible, corrosion-resistant component that allows the movable contact to move axially while maintaining the vacuum seal.

When the circuit breaker operates, the contacts separate, and any arcing that occurs happens inside the vacuum chamber, where the absence of air or other gases ensures rapid arc extinction.

II. How Vacuum Interrupters Work: The Science of Arc Quenching

The magic of vacuum interrupters lies in their ability to extinguish arcs almost instantaneously by leveraging the unique properties of a vacuum. Here’s how it works:

1. Contact Separation and Arc Initiation

When a fault (e.g., short circuit) triggers the circuit breaker, the movable contact pulls away from the fixed contact. Initially, a small gap forms, and current continues to flow through a metal vapor arc (created by the vaporization of contact material).

2. Arc Confinement in Vacuum

In a vacuum, there is no ambient gas to sustain the arc. The metal vapor from the contacts diffuses rapidly into the surrounding vacuum, and the low particle density prevents the formation of a stable plasma column.

3. Rapid Arc Extinction

As the contacts separate further, the arc’s energy is absorbed by the contact material’s vaporization and the vacuum’s inability to support ionization. Within milliseconds, the arc current drops to zero (during the AC cycle’s natural zero-crossing point), and the vacuum’s high dielectric strength (~10⁴ V/mm) prevents re-striking. The result? A clean, silent, and residue-free interruption.

III. Advantages of Vacuum Interrupters Over Traditional Technologies

Vacuum interrupters outperform conventional arc-quenching methods (oil, SF₆, air-blast) in multiple dimensions:

1. Environmental Friendliness

Zero Emissions: Unlike SF₆ (a potent greenhouse gas with 23,500× the GWP of CO₂) or oil (which poses fire and pollution risks), vacuum interrupters use no hazardous materials.
No Leakage Risks: Sealed for life (typically >30 years), they eliminate the need for gas replenishment or monitoring.

2. Compact and Lightweight

Vacuum interrupters occupy 70–80% less space than oil or SF₆ breakers of equivalent rating, enabling smaller substations and switchgear.
Their lightweight design simplifies installation and reduces material costs.

3. High Reliability and Longevity

No Wear from Arcing: Contact erosion is minimal (typically <0.1mm per operation) due to the self-cleaning effect of the vacuum.
Low Maintenance: No oil filtration, gas pressure checks, or desiccant replacement is required. Most units operate for 10,000–30,000 cycles without major servicing.

4. Superior Arc-Quenching Performance

Fast Interruption: Capable of handling fault currents up to 63kA (and beyond in advanced designs) with minimal contact damage.
High Dielectric Recovery: The vacuum’s insulation strength recovers rapidly after arc extinction, preventing re-strikes.

IV. Applications of Vacuum Interrupters

Vacuum interrupters are the backbone of medium-voltage (1kV–38kV) power systems, with widespread use in:

1. Medium-Voltage Circuit Breakers (12kV–40.5kV)

Industrial Plants: Factories, refineries, and mining operations rely on vacuum breakers for motor control, feeder protection, and transformer switching.
Utility Substations: Distribution networks use vacuum circuit breakers for load break and fault isolation.

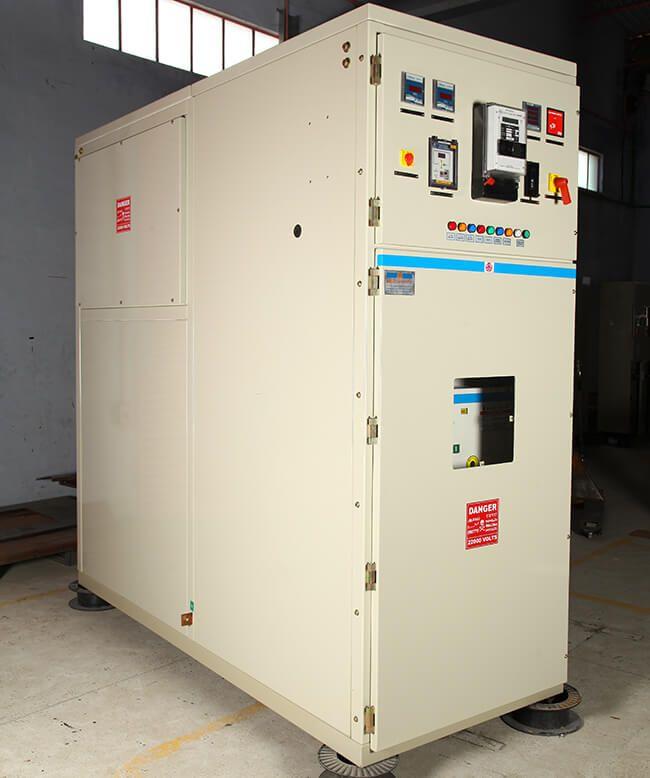

2. Switchgear and Reclosers

Gas-Insulated Switchgear (GIS): Vacuum interrupters are integrated into compact GIS designs, replacing SF₆-based components for environmentally friendly alternatives.
Automatic Circuit Reclosers (ACRs): Used in rural electrification and overhead lines to automatically restore power after transient faults.

3. Renewable Energy Integration

Solar and Wind Farms: Vacuum breakers protect inverters, transformers, and distribution lines in decentralized energy systems.
DC Interrupters (Emerging): Research is underway to adapt vacuum technology for DC applications (e.g., HVDC grids), where arc quenching is more challenging.

V. Technological Innovations and Future Trends

To meet the demands of modern power systems, vacuum interrupter technology continues to evolve:

1. Higher Voltage Ratings

Traditional vacuum interrupters are limited to 38kV, but advanced designs (e.g., multi-break configurations, optimized contact materials) are pushing ratings toward 72.5kV and beyond.

2. Enhanced Contact Materials

Copper-Chromium (CuCr) Alloys: The gold standard for contacts, balancing vaporization properties and arc erosion resistance. New composites (e.g., CuCr with tungsten additives) improve durability for high-current applications.

3. Integration with Smart Grids

Embedded sensors (e.g., contact wear monitors, vibration detectors) enable predictive maintenance and real-time health monitoring.
Vacuum breakers are compatible with digital protection relays, supporting automated grid management.

4. Sustainability Focus

Sealed-for-Life Design: Eliminates the need for gas handling, reducing lifecycle carbon footprints.
Recyclable Components: Metal and ceramic parts can be reclaimed at end-of-life, aligning with circular economy principles.

Conclusion

The vacuum interrupter is a testament to engineering ingenuity—a simple yet powerful device that has revolutionized electrical safety and efficiency. By harnessing the unique properties of a vacuum, it delivers fast, clean, and environmentally friendly current interruption, making it the ideal choice for modern power systems. As renewable energy adoption grows and grid complexity increases, vacuum interrupters will remain at the forefront, ensuring reliable electricity for homes, industries, and communities worldwide.
